Somfy LT 60 Sirius 80/12 NHK basic motor without adapter and drive wheel #1164235

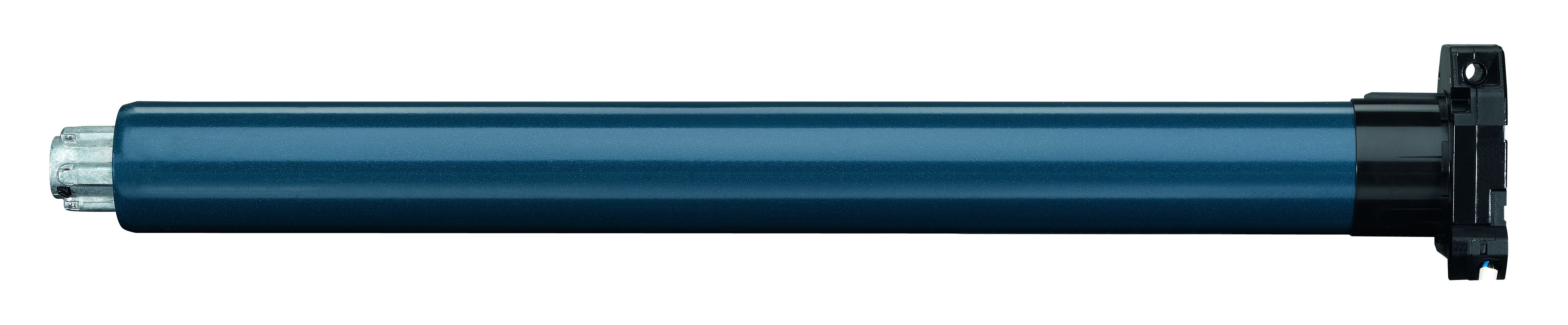

Somfy LT60 Sirius 80/12 NHK basic motor

The Somfy LT60 Sirius 80/12 NHK basic motor provides 80 Nm at 12 rpm and has a connection for suitable emergency manual crank operation.

Reference 1164235 is supplied without an adapter and drive wheel. The mechanical components must be selected for the existing tube.

Features

• Mechanical LT60 NHK tubular motor
• Mechanical upper and lower limit setting using adjustment buttons
• Integrated connection for emergency manual crank operation
• Detachable four-core motor cable
• IP44 protection rating and protection class I
• Wired operation without an integrated radio receiver

Applications and compatibility

The motor is intended for systems where the tube adaptation and motor mounting are selected individually and manual emergency operation is required.

FAQ

Is the motor ready for installation?

No. Adapter, drive wheel, motor bracket and any crank components must be selected for the installation.

How are the limits adjusted?

The end positions are adjusted mechanically using the motor-head buttons.
