Somfy HiPro LT 60 Vega 60/12 roller shutter motor SW70 ESM #1162121 #1162136 #1162129 #1162211

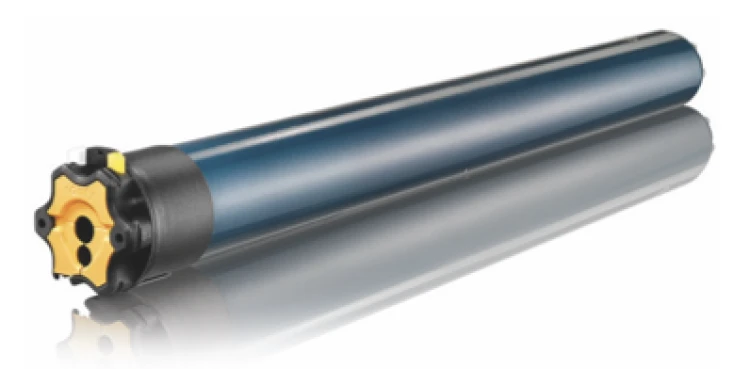

Somfy HiPro LT60 Vega 60/12 roller shutter motor for SW70 ESM

The Somfy HiPro LT60 Vega 60/12 is a wired mechanical roller shutter motor for installations with a compatible SW70 ESM roller tube. It provides 60 Nm of torque at 12 rpm.

The upper and lower end positions are adjusted mechanically at the motor head. Four detachable cable configurations are available.

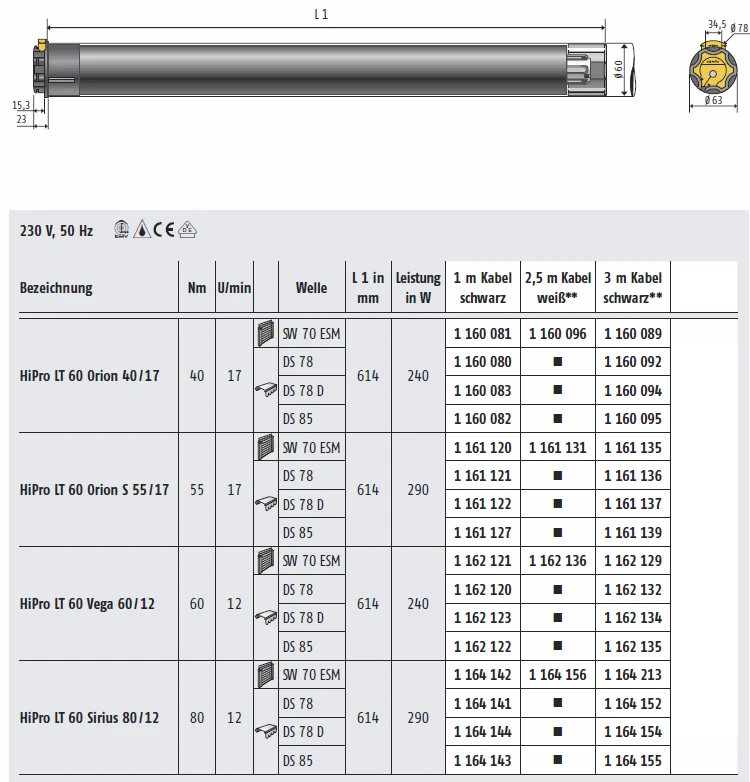

Available cable configurations

• 1 m black cable – Somfy reference 1162121
• 2.5 m white cable – Somfy reference 1162136
• 3 m black cable – Somfy reference 1162129
• 5 m black cable – Somfy reference 1162211

Features

• Mechanical LT60 tubular motor
• Mechanical upper and lower limit setting
• Limit switch capacity of up to 34 revolutions
• Detachable four-core connection cable
• Thermal protection at 140°C
• IP44 protection rating and protection class I
• Wired operation without an integrated radio receiver

Applications and compatibility

The motor is intended for roller shutter and sun protection systems with a compatible SW70 ESM roller tube. Check the torque, speed, tube profile, motor bracket, adapter and drive wheel before replacement.

FAQ

How are the end positions adjusted?

The upper and lower end positions are adjusted mechanically at the motor head.

Can the motor be installed in every SW70 tube?

No. The exact SW70 ESM tube profile and all mechanical components must match the installation.

Is radio control integrated?

No. A compatible external radio receiver is required if radio control is needed.
