Somfy HiPro LT 60 Orion S 55/17 roller shutter motor SW70 ESM #1161120 #1161131 #1161135

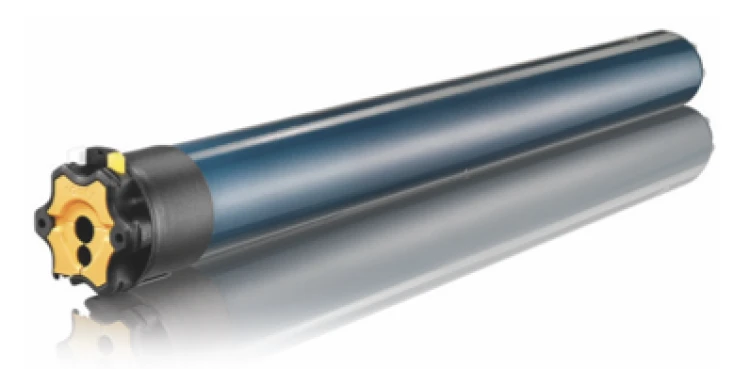

Somfy HiPro LT60 Orion S 55/17 roller shutter motor for SW70 ESM

The Somfy HiPro LT60 Orion S 55/17 is a wired mechanical roller shutter motor for installations with a compatible SW70 ESM roller tube. It provides 55 Nm of torque at 17 rpm.

The upper and lower end positions are adjusted mechanically at the motor head. Three detachable cable configurations are available.

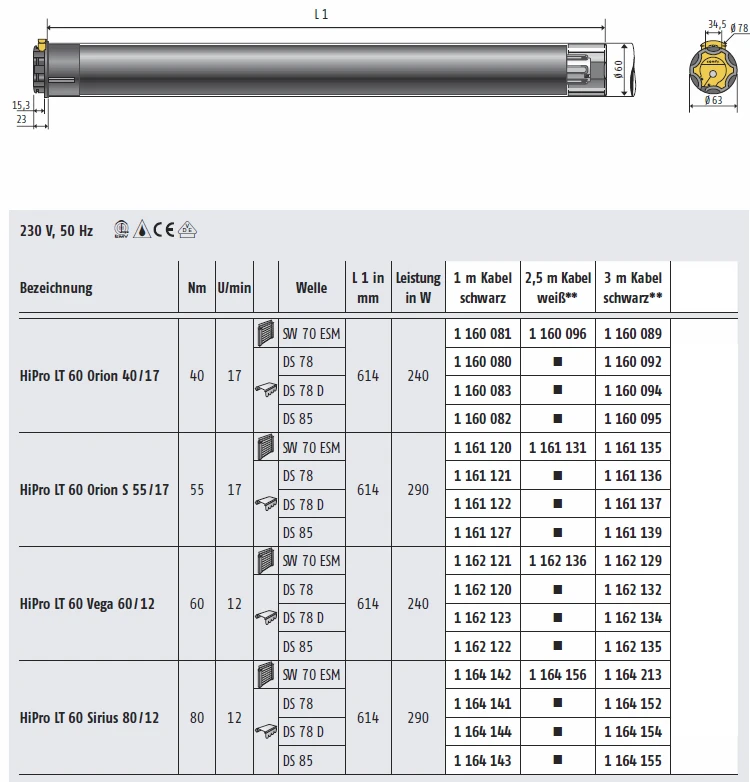

Available cable configurations

• 1 m black cable – Somfy reference 1161120
• 2.5 m white cable – Somfy reference 1161131
• 3 m black cable – Somfy reference 1161135

Features

• Mechanical LT60 tubular motor
• Mechanical upper and lower limit setting
• Limit switch capacity of up to 35 revolutions
• Detachable four-core connection cable
• IP44 protection rating and protection class I
• Wired operation without an integrated radio receiver

Applications and compatibility

The motor is used in roller shutter and sun protection systems with a compatible SW70 ESM roller tube. Before replacement, check the torque, tube profile, internal tube diameter, motor bracket, adapter and drive wheel.

FAQ

Can the motor be fitted to every SW70 tube?

No. The exact tube profile and the mechanical components must be compatible with the installation.

How are the end positions adjusted?

The upper and lower end positions are adjusted mechanically at the motor head.

Can the motor be controlled by radio?

There is no integrated radio receiver. Radio control requires a technically compatible external receiver.
