Somfy HiPro LT 60 Orion S 55/17 awning motor DS78/D #1161122 #1161137

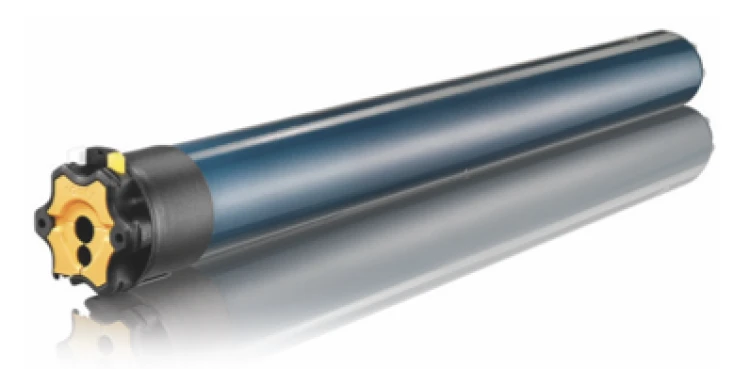

Somfy HiPro LT60 Orion S 55/17 awning motor for DS78/D

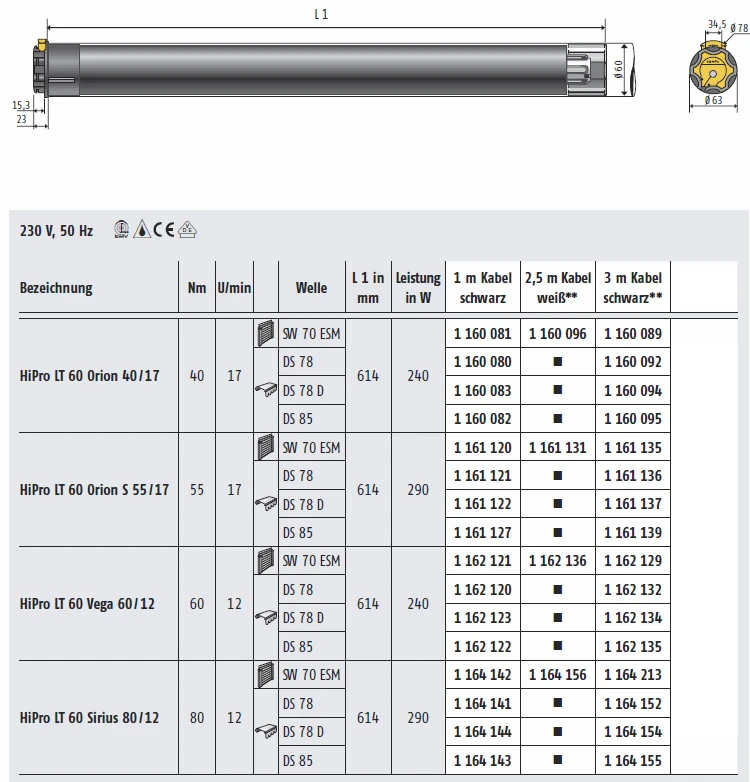

The Somfy HiPro LT60 Orion S 55/17 DS78/D is a wired mechanical awning motor with 55 Nm and 17 rpm. It is intended for systems whose mechanical construction specifically requires the DS78/D version.

Available cable configurations

• 1 m black cable – Somfy reference 1161122
• 3 m black cable – Somfy reference 1161137

Features

• Mechanical upper and lower limit setting
• Limit switch capacity of up to 35 revolutions
• Detachable four-core connection cable
• IP44 protection rating and protection class I
• Wired operation without an integrated radio receiver

Applications and compatibility

The motor is used in awning and sun protection systems with a compatible DS78/D mechanical version. The tube profile, motor bracket, adapter and drive wheel must be identified before ordering.

FAQ

Can this motor replace a DS78 version?

Not without technical verification. DS78 and DS78/D are different mechanical versions.

Does the motor require electronic programming?

No. The end positions are adjusted mechanically.

Which cable configurations are available?

A 1 m black cable and a 3 m black cable are available.
