Somfy HiPro LT 60 Orion S 55/17 awning motor DS78 #1161121 #1161136

Somfy HiPro LT60 Orion S 55/17 awning motor for DS78

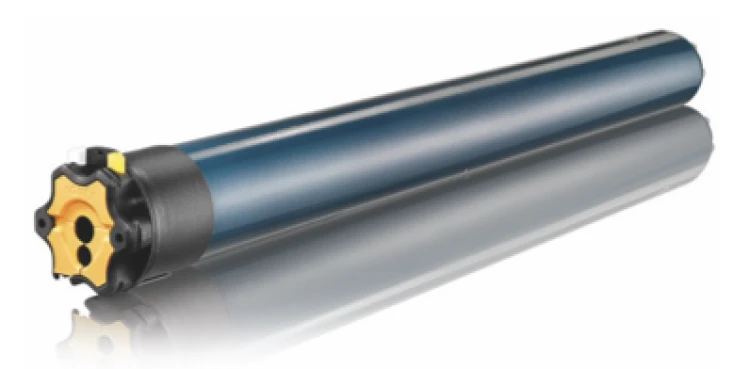

The Somfy HiPro LT60 Orion S 55/17 DS78 is a mechanical awning motor with 55 Nm of torque and a speed of 17 rpm. It is intended for systems requiring a compatible DS78 mechanical version.

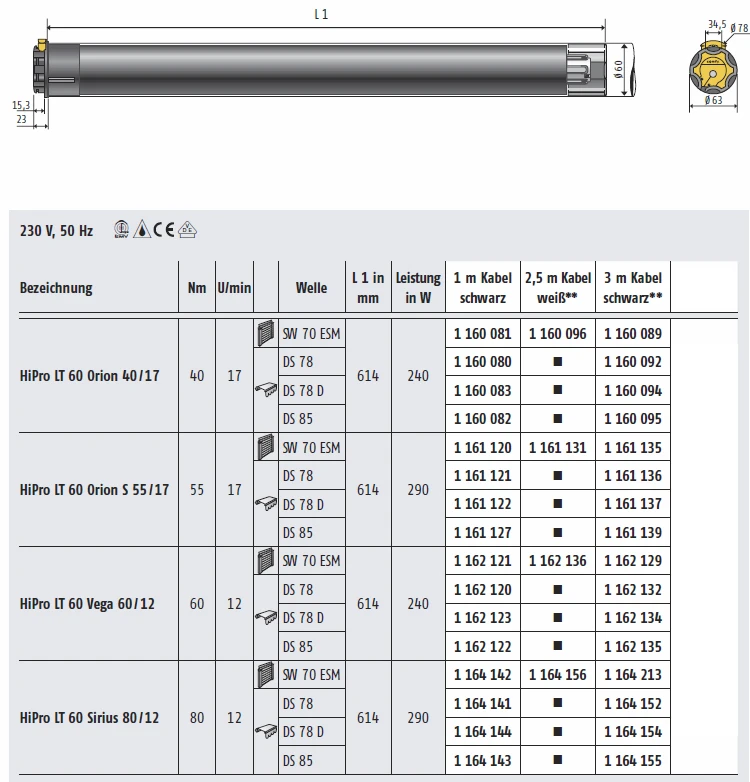

Available cable configurations

• 1 m black cable – Somfy reference 1161121
• 3 m black cable – Somfy reference 1161136

Features

• Mechanical upper and lower limit setting
• Limit switch capacity of up to 35 revolutions
• Detachable four-core connection cable
• IP44 protection rating and protection class I
• Wired operation without an integrated radio receiver

Applications and compatibility

The motor is used in awning and sun protection systems requiring the DS78 mechanical version. DS78 must not be confused with DS78/D or another tube version. Check the tube profile, motor bracket, adapter and drive wheel before ordering.

FAQ

Can a DS78/D motor be used instead?

Not without technical verification. The mechanical versions are different.

How are the limits set?

The upper and lower end positions are adjusted mechanically at the motor head.

Which cable length should be selected?

Select either the 1 m or 3 m black cable according to the electrical connection route.
