Somfy HiPro LT 60 Jupiter 85/17 basic motor without adapter and drive wheel #1165178
NEW
► LT60 basic motor without adapter and drive wheel
► 85 Nm torque and 17 rpm
► Mechanical limit setting with a capacity of 34 revolutions
► Star-shaped head and detachable cable connection
► Supplied without connection cable
► 230 V / 50 Hz, 450 W and IP44
► 85 Nm torque and 17 rpm
► Mechanical limit setting with a capacity of 34 revolutions
► Star-shaped head and detachable cable connection
► Supplied without connection cable
► 230 V / 50 Hz, 450 W and IP44

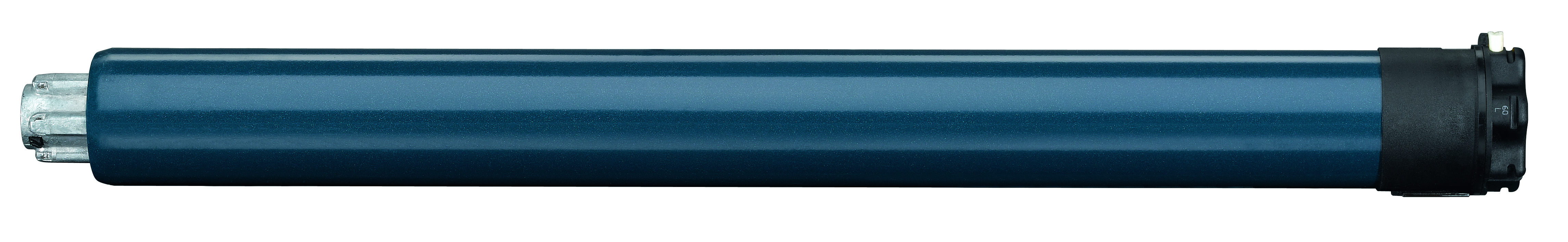

Somfy HiPro LT 60 Jupiter 85/17 basic motor without adapter and drive wheel
The Somfy HiPro LT 60 Jupiter 85/17, reference 1165178, is a mechanical basic motor from the LT60 series. It delivers 85 Nm of torque at 17 rpm and is supplied without a connection cable, tube adapter or drive wheel.
The separate selection of tube-specific components allows the motor to be configured for the intended installation. Its star-shaped head is used with a suitable motor bracket, while the upper and lower end positions are set mechanically.
Product features
- 85 Nm torque at 17 rpm
- Mechanical limit setting
- 34-revolution limit switch capacity
- Star-shaped motor head
- Detachable connection for a four-core motor cable
- Thermal protection at 140 °C
- IP44 and protection class I
- Supplied without cable, adapter and drive wheel
| Manufacturer | Somfy |
| Series | HiPro LT60 |
| Model | LT 60 Jupiter 85/17 |
| Reference | 1165178 |
| Configuration | Basic motor without adapter and drive wheel |
| Torque | 85 Nm |
| Speed | 17 rpm |
| Limit switch type | Mechanical |
| Limit switch capacity | 34 revolutions |
| Motor head | Star-shaped head |
| Power supply | 230 V / 50 Hz AC |
| Voltage range | 207–244 V |
| Rated current | 1.8 A |
| Operating power consumption | 450 W |
| Standby consumption | 0 W |
| Thermal protection | 140 °C |
| Ingress protection | IP44 |
| Protection class | Class I |
| Operating time | 4 minutes |
| Operating temperature | −25 °C to 70 °C |
| Storage temperature | −20 °C to 80 °C |
| Sound level | 65 dB |

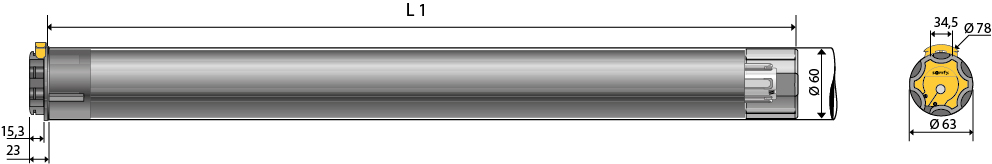

| Length | 665 mm |
| Width | 63 mm |
| Height | 63 mm |
| Outside diameter | 58 mm |
| Nominal diameter | 60 mm |
| Minimum tube inside diameter | 60 mm |
| Distance between fixing points | 642 mm |
| Connection cable | Not included |
| Cable connection | Detachable |
| Number of conductors | 4 |
| Conductor cross-section | 0.75 mm² |
| Weight | 4.45 kg |
- 1 × Somfy HiPro LT 60 Jupiter 85/17 basic motor #1165178
Not included: connection cable, tube adapter and drive wheel.
